Here we consider only the relevant properties of fluids for our purposes. Find out about surface tension and capillary action elsewhere. Note that capillary action only features in pipes of ≤ 10 mm diameter.

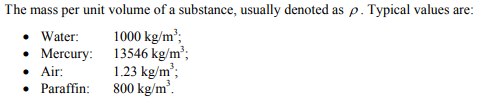

Mass Density

Specific Weight

Relative Density (Specific Gravity)

A dimensionless measure of the density of a substance with reference to the density of some standard substance, usually water at 4°C:

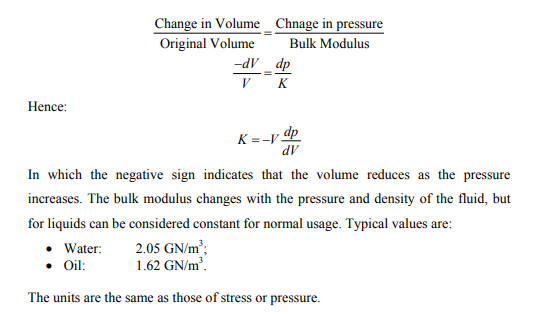

Bulk Modulus

In analogy with solids, the bulk modulus is the modulus of elasticity for a fluid. It is the ratio of the change in unit pressure to the corresponding volume change per unit volume, expressed as:

Viscosity

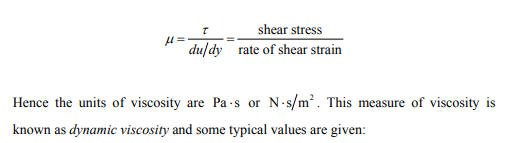

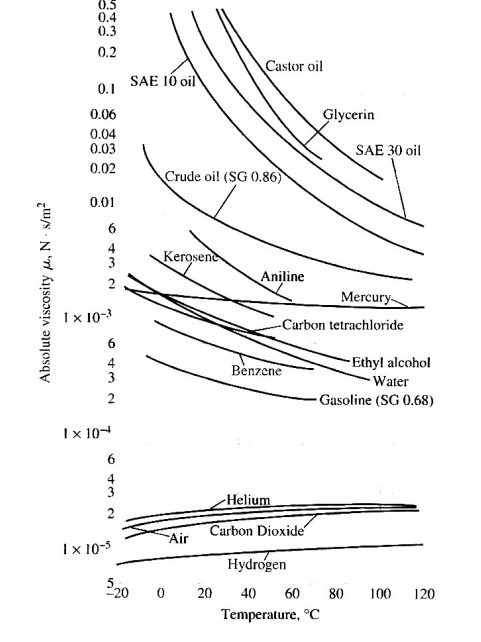

The viscosity of a fluid determines the amount of resistance to shear force. Viscosities of liquids decrease as temperature increases and are usually not affected by pressure changes. From Newton’s Law of Viscosity:
