This is an article on multi-stage flash distillation where we will look at what is multi-stage flash distillation. Distillation has evolved from the old steam coil vacuum evaporators, to today’s modern reverse osmosis and multi-flash distillation plants that are used for desalination of seawater.
Introduction to Multi-Stage Flash Distillation for Desalination
Many years ago when I was a young boy at sea, ships and in particular steam ships, had evaporators used to produce fresh water from seawater. When I was promoted to 4th Engineer Officer I was told I would be in charge of the evaporators (or “vaps” as we called them). Little did I know that I would spend hours coaxing a little bit more water out of these old beasts!
Anyway in those far-off days we made the water for the boiler using this method of coil evaporators, more about this later.
This is an article in Civil Engineering on multistage flash distillation for desalination of seawater. We begin with an overview of evaporation and distillation methods.
Overview of the use of Evaporators and Distillation Methods for Desalination of Seawater
Evaporators became popular with the advent of ships’ steam engines, which required better quality, pressure, and quantity of steam from the ships’ boilers. Evaporators were the first method used to produce distilled water from seawater to feed the ships boilers. Meanwhile on land, countries that were experiencing constant drought conditions were starting to use large-scale thermal desalination plants to produce fresh water from seawater or underground brine aquifers.

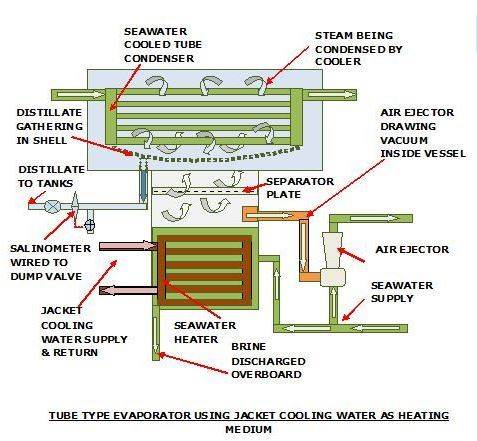

A sketch of an evaporator that was used forty years ago on steamships is shown below, and it was one of the types used in land desalination plants. This is drawn from memory, but gives a general idea of the process.
Reverse Osmosis (RO) was used as desalination method from the mid-1960s, and it was the most popular method of distillation. However since the advent of multi-stage flash distillation, this type of plant produces the most freshwater from seawater, worldwide.

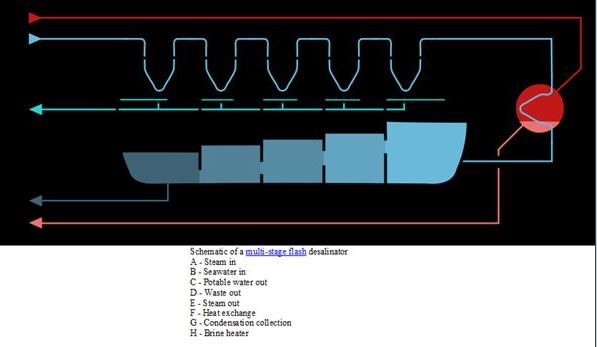

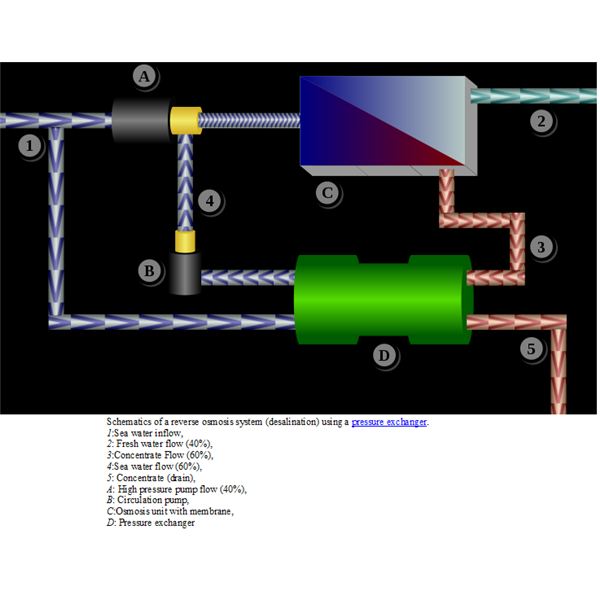

Schematics of a reverse osmosis system and multi stage flash (desalination) are shown below:
Before leaving this section it is worth a quick look at electrodialysis. This method uses electricity to remove the salts from water through ion exchange membranes at a very competitive rate. Although it is used mainly for brackish water or low salt content water, it has been used for desalination of seawater.

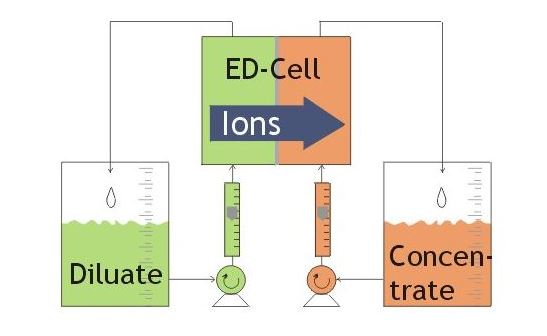

A typical ED Cell is shown below:
Multi-Stage Flash Distillation for Desalination
Multistage stage flash distillation for desalination is carried out in a pressure vessel that is divided into numerous sections that have decreasing pressures and temperatures. The sections each have a set of coils that have seawater pumped through them. These coils serve two purposes: condensing the steam produced by the flash evaporation and preheating the seawater to almost the required temperature for distillation.
The seawater then passes through an inline steam heater, taking it up to a temperature between 70ᴼC and 100ᴼC; the seawater now being considered to be brine. Multi-flash distillation plant engineers will sometimes reduce this temperature to decrease the formation of scale.
The brine now passes into the different stages and, as it is at a higher temperature than the sections, some of it flashes to steam. This is condensed by the seawater coils at the top of the sections, with the condensate dropping down onto the collection trays under the coils.
This continues to the final stage when the brine is pumped to waste and the collected distilled water is delivered to storage tanks. There is a salinometer on the discharge line to the storage tanks that operates a tank isolating valve/dump valve in the event of a high ppm alarm.

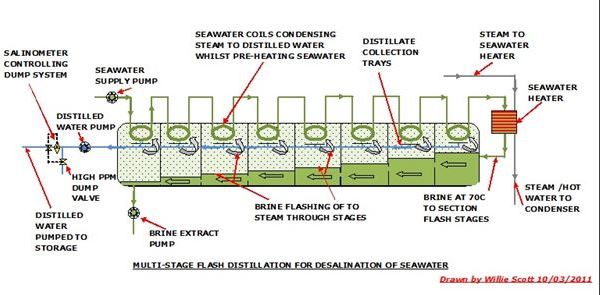

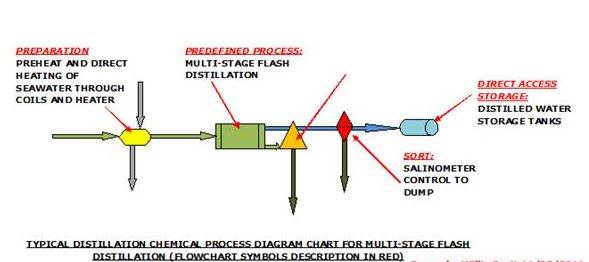

A typical multi-stage flash distillation plant is shown below, along with one type of distillation chemical process diagram chart applied to desalination.
