Projection of Plane Surfaces
Posted inEngineering Graphics

Projection of Plane Surfaces

Posted by admin August 6, 2021

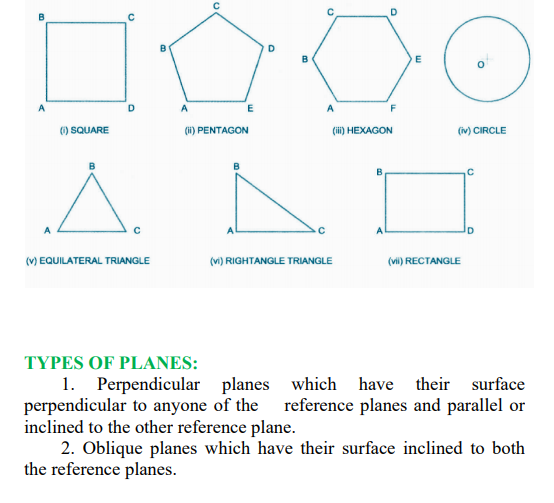

A plane is a two dimensional object having length and breadth only. Its thickness is always neglected; various shapes of plane figures are considered such as square, rectangle, circle, pentagon, hexagon, etc.
