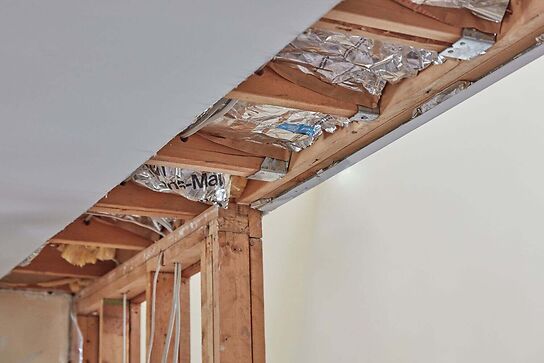

Bearing wall

Bearing wall, orload-bearing wall, Wall that carries the load of floors and roof above in addition to its own weight. The traditional masonry bearing wall is thickened in proportion to the forces it has to resist: its own weight, the dead load of floors and roof, the live load of people, as well as the lateral forces of arches, vaults, and wind. Such walls may be much thicker toward the base, where maximum loads accumulate. Bearing walls may also be framed and sheathed or constructed of reinforced concrete.

Roof

Roof, covering of the top of a building, serving to protect against rain, snow, sunlight, wind, and extremes of temperature. Roofs have been constructed in a wide variety of forms—flat, pitched, vaulted, domed, or in combinations—as dictated by technical, economic, or aesthetic considerations.

The earliest roofs constructed by man were probably thatched roofs that were made of straw, leaves, branches, or reeds; they were usually set at a slope, or pitch, so that rainfall could drain off them. Conical thatched roofs are a good example of this type and are still widely used in the rural areas of Africa and elsewhere. Thicker branches and timbers eventually came to be used to span a roof, with clay or some other relatively impermeable substance pressed into the interstices between them. Gabled and flat roofs were possible with these materials. With the invention of brick and cut stone for building, the basic roof forms of the dome and vault appeared.

Two main types of roofs are flat roofs and sloping ones. The flat roof (see the Figure) has historically been widely used in the Middle East, the American Southwest, and anywhere else where the climate is arid and the drainage of water off the roof is thus of secondary importance. Flat roofs came into widespread use in Europe and the Americas in the 19th century, when new waterproof roofing materials and the use of structural steel and concrete made them more practical. Flat roofs soon became the most commonly used type to cover warehouses, office buildings, and other commercial buildings, as well as many residential structures.

Several basic roof designs.

Sloping roofs come in many different varieties. The simplest is the lean-to, or shed, which has only one slope. A roof with two slopes that form an “A” or triangle is called a gable, or pitched, roof. This type of roof was used as early as the temples of ancient Greece and has been a staple of domestic architecture in northern Europe and the Americas for many centuries. It is still a very common form of roof. A hip, or hipped, roof is a gable roof that has sloped instead of vertical ends. It was commonly used in Italy and elsewhere in southern Europe and is now a very common form in American houses. Gable and hip roofs can also be used for homes with more complicated layouts. The gambrel roof is a type of gable roof with two slopes on each side, the upper being less steep than the lower. The mansard roof is a hipped gambrel roof, thus having two slopes on every side. It was widely used in Renaissance and Baroque French architecture. Both of the aforementioned roof types can provide extra attic space or other room without building an entire additional floor. They can also have a strong aesthetic appeal.

The vault is a parallel series of arches used to form a roof, the most common form being a cylindrical or barrel vault. Vaults came into their greatest prominence in Gothic architecture. The dome is a hemispherical structure that can serve as a roof. Domes have surmounted some of the most grandiose buildings of ancient Roman, Islamic, and post-medieval Western architecture. Vaults and domes do not require a supporting framework directly below the vaulting because they are based on the principle of the arch, but flat and gable roofs frequently require internal supports such as trusses or other bracing. A truss is a structural member that is composed of a series of triangles lying in a single plane. Until the later 19th century, such supporting frameworks were made of wooden beams, sometimes in highly complicated systems. Steel and reinforced concrete have for the most part replaced such heavy wooden support systems, and such materials moreover have enabled the development of new and dramatic roof forms. Thin-shell roofs using concrete reinforced with steel rods can produce domes and barrel vaults that are only three inches thick yet span immense spaces, providing unobstructed interior views for stadiums and amphitheatres. In cantilevered roofs, a roof made of thin precast concrete is suspended from steel cables that are mounted on vertical towers or pylons of some sort. The geodesic dome is a modern structural variant of the dome form.

The external covering of a roof must prevent rainfall or other precipitation from penetrating a building. There are two main groups of roof coverings. One group consists of a waterproof membrane or film that is applied as a liquid and that repels water by its utter impermeability after it has dried; the tar that is used to coat roofing felt is the prime example of this type. The other group consists of pieces of a waterproof material that are arranged in such a way as to prevent the direct passage of water through the joints between those pieces. This group includes shingles made of various materials, tiles made of baked clay or slate, and corrugated sheets of steel, aluminum, lead, copper, or zinc. Flat roofs are normally covered with roofing felt and tar, while sloped roofs are generally covered with shingles or sheet metal.
